Eco Series

Compression Testing Eco Model Digital

25 Ton to 300 Ton

The Eco Compression Testing Machine is designed to conduct compression tests on concrete cube and cylinder specimens. The welded plate load frame is supplied with an attached hydraulic power pack for reliable day-to-day testing.

Solid machined spacers help test different concrete specimen sizes, while the hard-chromed piston supports quick lift and return. Capacity options include 1000 kN, 2000 kN, and 3000 kN configurations.

For concrete cubes and cylinders

Attached hydraulic power pack

Hard-chromed piston

Safety lockable door

Features

Overload cut off facility
Piston over lift cut off facility
Compact and sturdy base-mounted frame with pump clamped to the frame
Matt finished PU paint in dark color
Push buttons with built-in light indicators
Hardened and ground platen provided
Motor phase to be specified while ordering: 440 V AC three phase or 230 V AC single phase

Key Observations

25 Ton and 50 Ton models are suited for smaller 50 mm, 60 mm, and 70 mm cubes.
100 Ton to 300 Ton models are rated for standard 100 mm and 150 mm concrete cubes.
The 120 Ton model operates at the highest pressure of 640 kg/cm2 because of its ram-to-capacity ratio.
All listed models share 50 mm ram travel and 310 mm vertical daylight for common concrete specimen testing.

Specifications

Specification	25 Ton	50 Ton	100 Ton	120 Ton	200 Ton	300 Ton
Ram Diameter	80 mm	120 mm	165 mm	165 mm	234 mm	250 mm
Max Pressure	480 kg/cm2	480 kg/cm2	480 kg/cm2	640 kg/cm2	480 kg/cm2	600 kg/cm2
Motor Power	0.5 HP, 230 V	0.5 HP, 230 V	1 HP, 440 V	1 HP, 440 V	1 HP, 440 V	1 HP, 440 V
Platen Dia.	200 mm	200 mm	220 mm	220 mm	300 mm	300 mm
Horizontal Clearance	210 mm	210 mm	240 mm	240 mm	310 mm	350 mm
Machine Weight	210 kg	210 kg	330 kg	340 kg	580 kg	850 kg

Smart Series

Compression Testing ECO Smart

1000 kN / 2000 kN / 3000 kN

The Eco Smart Compression Testing Machine features a robust welded plate-type load frame with a hydraulic power pack. It is supplied with solid machined spacers for testing different concrete specimen sizes.

The hard-chromed piston ensures fast lifting and return, while the smart interface gives operators a clear testing workflow with onboard data and graph support.

7-inch LCD touch screen

10-point dynamic calibration

Onboard printing

Pen drive data storage

Features

Overload safety cut-off mechanism
CNC-finished distance pieces for different specimen shapes and sizes
Compact base-mounted load frame with pump clamped to the frame
Lockable safety door
Hardened and ground platen
Real-time graph for load versus time
Onboard input for sample ID, test ID, lab ID, specimen weight, and specimen age
SCADA software available at additional cost
Complies with key specifications of IS-516, IS-14858, and applicable ASTM, EN, and BS standards
Actual pace rate display in kN/sec
Automatic stress determination and display
Self-aligning platen
Storage for approximately 100,000 records on pen drive with graph export in CSV/JPEG format
Peak stress calculation based on specimen type and shape
No external PC or software required
5% overload protection for calibration up to full load

Specifications

Specification	1000 kN (~100T)	200 Ton	300 Ton
Ram Diameter	165 mm	234 mm	250 mm
Max Pressure	480 kg/cm2	480 kg/cm2	600 kg/cm2
Least Count	0.001 kN	0.001 kN	0.001 kN
Specimen Range	Up to 150 mm cube	Up to 200 mm cube	Up to 200 mm cube
Horizontal Space	260 mm	320 mm	350 mm
Machine Weight	250 kg	580 kg	800 kg

Smart Series

CTM ECO Auto Smart

1000 kN / 2000 kN / 3000 kN

The Eco Auto Smart Compression Testing Machine is a sturdy welded plate-type load frame complete with hydraulic power pack attached to it. Solid machined spacers are supplied to test different concrete specimen sizes.

The piston is hard chromed for fast lift and return. The machine supports pace-rate testing specific to 150 mm cube testing applications.

Automatic pace rate control

Emergency stop push button

230 V AC single phase motor

Self-aligning platen

Features

7-inch LCD touch screen
10-point dynamic calibration facility
Onboard printing facility
Overload safety cut off facility
CNC-finished distance pieces for different specimen shapes and sizes
Compact and sturdy base-mounted load frame with pump clamped to the frame
Matt finished PU paint in dark color
Safety lockable door
Hardened and ground platens
Real-time graph for load versus time
Onboard input for sample ID, test ID, lab ID, specimen weight, and specimen age
SCADA software available at additional cost
Meets key specifications of IS-516, IS-14858, and other ASTM, EN, and BS standards depending on selected platens and accessories
Actual pace rate display in kN/sec
Automatic stress determination and display
Data storage for approximately 10,000 records on pen drive with graph export in CSV/JPEG format
Peak stress calculation based on sample type and shape
5% overload protection to calibrate the machine to full load

Specifications

Specification	1000 kN	200 Ton	300 Ton
Ram Diameter	165 mm	234 mm	300 mm
Pace Rate Control	1.0 to 15.0 kN/sec	1.0 to 15.0 kN/sec	1.0 to 15.0 kN/sec
Power Supply	1 HP, 230 V	1 HP, 230 V	1 HP, 230 V
Max Pressure	480 kg/cm2	480 kg/cm2	600 kg/cm2
Horizontal Clearance	260 mm	320 mm	380 mm
Machine Weight	250 kg	580 kg	850 kg

Servo Series

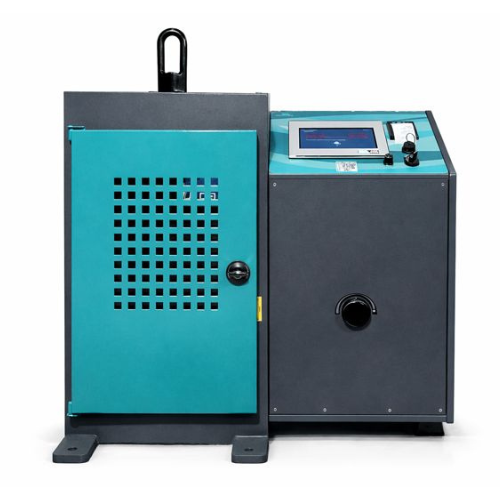

ECO Servo Smart

Advanced servo compression testing

The Superb Autocon Advanced Servo Compression Testing Machine is a high-performance solution engineered to meet rigorous international testing standards.

The machine uses a sturdy welded-plate load frame with integrated hydraulic power pack, giving laboratories durable construction in a compact footprint. It supports concrete cubes, cylinders, rock, paving tiles, and other specimen types with precision pace rate control.

Servo-controlled pace rate

7-inch LCD touch screen

USB data transfer

SCADA-ready system

Features

Solid machined spacers for different materials and specimen sizes
Hard-chromed piston for rapid lift and return
Fully automatic regulation from 0.1 kN/sec to 20 kN/sec
Real-time load versus time graph on screen
Integrated pump clamped directly to the frame
Overload cut-off protection
Piston over-lift cut-off using a limit switch
Lockable safety door for operator protection
CNC-finished load frame with matt PU paint coating
Hardened and ground platens for uniform load distribution

Control & Interface

7-inch LCD touch screen for intuitive operation and data entry.
10-point calibration facility for high accuracy across the loading range.
USB port for transfer through pen drive.
SCADA-ready system for optional computer-based logging and analysis.

Performance & Automation

Automatic pace rate control helps maintain the loading rate required by ASTM, EN, and IS methods.
Live graph display helps operators monitor specimen behavior until failure.
Compact base-mounted hydraulics save lab floor space.

Servo Series

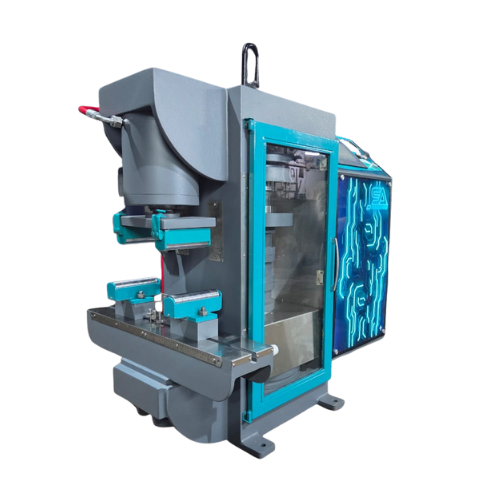

Eco Servo Smart Plus

Precision servo-controlled CTM

Eco Servo Smart Plus is a servo-controlled compression testing machine designed for accurate, reliable, and efficient concrete testing.

It combines a heavy-duty load frame with integrated hydraulics and smart controls for consistent operation in busy testing laboratories.

Servo control

Heavy-duty frame

Consistent loading

Lab-focused operation

Features

Precise load control for repeatable concrete strength testing
Integrated hydraulic system for smooth performance
Digital interface for easy operation and result tracking
Suitable for high-frequency laboratory testing
Designed for long service life with dependable components

Best Suited For

Commercial material testing laboratories.
Infrastructure and construction quality control departments.
Users who need servo-controlled accuracy with practical day-to-day operation.

Servo Series

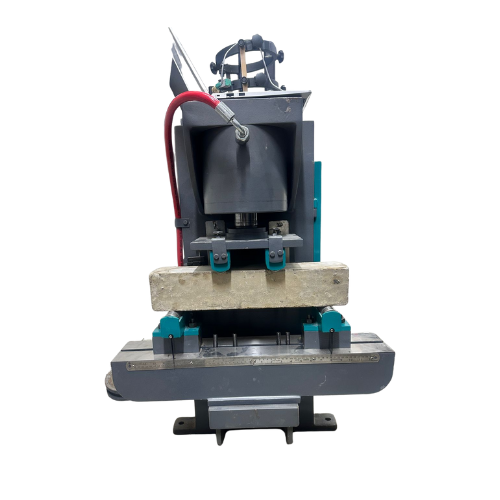

Servo Smart

Smart servo-controlled CTM

Servo Smart is a servo-controlled compression testing machine designed for accurate, reliable, and efficient concrete testing.

It uses a heavy-duty load frame and an integrated hydraulic system to deliver consistent performance, precise control, and simple operation for routine lab work.

Precise servo control

Integrated hydraulic power pack

Reliable daily testing

Easy operator workflow

Features

Stable load application for concrete specimens
Controlled loading rate for repeatable results
Digital control interface for clear test operation
Heavy-duty construction for regular laboratory use
Suitable for concrete cubes, cylinders, and related construction material specimens

Multi-Test Servo Series

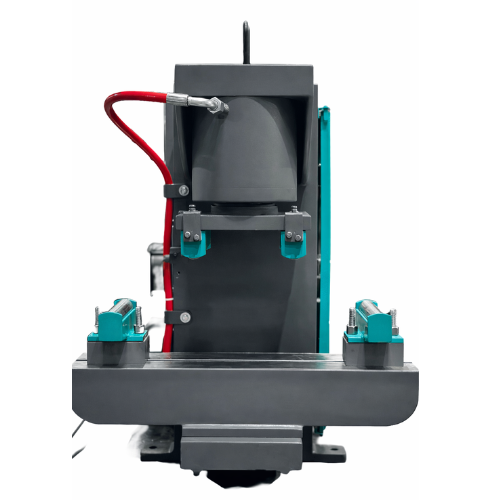

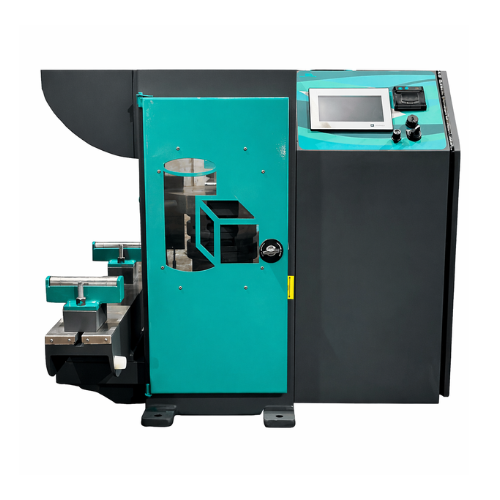

3 in 1 ECO Servo Smart

100 kN / 500 kN / 2000 kN / 3000 kN

The 3 in 1 Servo Smart Flexure CTM by Superb Autocon is a versatile laboratory system designed to perform compression, flexure bending, and splitting tensile tests within one integrated unit.

Unlike standard machines that only test cube strength, this model is built as a space-saving solution for laboratories that need multiple concrete testing methods in one setup.

Compression, flexure, and splitting tests

Siemens PLC control

Italian pressure sensor

10 lakh test storage

Features

Siemens PLC gives industrial-grade control reliability
Italian pressure sensor improves sensitivity and durability
Automatic pace rate control reduces human error during standard testing
10-point calibration supports accuracy across the complete load range
7-inch touch screen with live load versus time graph
Auto MPa indicator calculates strength from peak load and preset specimen size
Optional LVDT support for displacement and modulus of elasticity work
Automatic valves can switch between frames without manual hose switching
Auto cutoff protects the machine from overload, overtime, and hydraulic overheating

Advanced Data & Interface

Stores up to 10 lakh tests on pen drive in Excel-friendly format for audit trails and high-volume labs.
Live graph display helps visualize elastic and plastic deformation during testing.
Preset specimen sizes allow automatic strength display in N/mm2 or MPa.

Key Hardware & Safety

Optional LVDT enables displacement measurement for stiffness-related testing.
Automatic valves simplify multi-frame operation.
Auto cutoff helps protect the hydraulic and measurement system during abnormal test conditions.

Specifications

Specification	Value
Test Modes	Compression, flexure bending, and splitting tensile
Capacity Range	100 kN / 500 kN / 2000 kN / 3000 kN
Control System	Siemens PLC with servo-controlled pace rate
Sensor	Italian pressure sensor
Data Storage	Up to 10 lakh records on pen drive

Raptor Series

Auto Raptor Compression Testing Machine

200 Ton / 2000 kN

Auto Raptor Compression Testing Machine is a fully automatic system engineered for heavy-duty laboratory use with stable, accurate, and automated compression testing.

It is designed for concrete cube and cylinder testing where high capacity, pace rate control, and dependable data handling are required.

10-point dynamic calibration

1.0 to 10.0 kN/sec pace rate

4-inch LCD touch screen

10,000 record storage

Features

Automatic motor speed adjustment maintains the selected pace rate
Real-time load versus time graph helps identify early failure or seating issues
Overload safety cut-off protects the hydraulic ram and measurement system
Fine 0.001 kN resolution supports high-precision testing
3-phase power supports constant torque for smooth loading

Key Technical Insights

10-point dynamic calibration helps maintain load-cell linearity from low load to full capacity.
Pace rate control is essential for automatic machines used under standard concrete testing methods.
The onboard display and internal storage allow extended testing without immediate PC export.
Overload cut-off reduces the risk of damage when a sample is stronger than expected or the machine is left unattended.

Specifications

Feature	Specification	Importance
Capacity	200 Ton / 2000 kN	Suitable for high-strength concrete cube testing
Least Count	0.001 kN	Fine resolution for research and certification work
Horizontal Clearance	280 mm	Fits standard 150 mm cubes and 150 mm cylinders
Vertical Daylight	310 mm	Fits a 150 x 300 mm cylinder with platen clearance
Ram Diameter	215 mm	Helps distribute high loads evenly and reduce frame flex
Motor Capacity	1 HP, 440 V, 3-phase	Provides steady torque for smooth pace-rate testing

Raptor Series

Raptor Compression Testing Machine

High-capacity CTM

Raptor Compression Testing Machine is built around a robust welded plate load frame and integrated hydraulic power pack.

It is designed for stable and accurate testing of concrete cube and cylinder specimens in demanding laboratory environments.

Heavy-duty load frame

Integrated hydraulics

Stable high-load testing

Concrete cube and cylinder testing

Features

Rigid frame structure for dependable compression testing
Smooth hydraulic loading for consistent results
Designed for high-strength concrete specimens
Operator-friendly testing workflow
Built for laboratories that need durable, repeatable testing performance

Manual Series

Hand Operated CTM

Portable and economical CTM

Hand Operated CTM is a portable and economical compression testing machine designed for simple operation and easy maintenance.

It is useful for remote locations and mobile laboratories where low-capacity concrete and cement testing is required without a fully automatic setup.

Manual operation

Portable design

Low maintenance

Suitable for field testing

Features

Simple hand-operated loading for basic compression tests
Practical option for remote sites and mobile labs
Economical solution for routine low-capacity testing
Easy to operate and maintain
Suitable for concrete, cement, and construction material samples

Best Suited For

Field quality checks where power availability is limited.
Small laboratories that need an economical CTM option.
Routine testing where manual operation is preferred.

Key Features

Rigid frame structure for stable testing

Smooth load application for accurate readings

Clear display for test values

Easy-to-use control system

Designed for continuous lab usage with low maintenance

Compression Testing Machine Manufacturer in India

As a Compression Testing Machine Manufacturer in India, Superb Autocon delivers reliable and accurate testing solutions for material testing laboratories, construction companies, infrastructure projects and quality control departments. We design machines that provide stable load application, clear result display and long service life. Clients trust us as a Compression Testing Machine Manufacturer in India because we focus on strength performance and consistent testing output. Our systems support daily lab operations and help businesses maintain proper quality standards with confidence.

We serve multiple industries that require controlled and repeatable compression testing results. As a Compression Testing Machine Manufacturer in India, we supply equipment that meets practical testing needs and industry expectations. Our experience as a Universal Compression Testing Machine Manufacturer in India helps us support varied material testing requirements. We also operate as a Hydraulic Compression Testing Machine Manufacturer in India to provide strong and stable load systems. Our role as a Digital Compression Testing Machine Manufacturer in India allows us to deliver accurate digital readings. Clients also recognize us as an Electronic Compression Testing Machine Manufacturer in India for dependable electronic control systems. Businesses continue to choose us as a Compression Testing Machine Manufacturer in India because we focus on trust, quality and long-term partnership.

Compression Testing Machine Supplier in India

As a Compression Testing Machine Supplier in India, Superb Autocon provides reliable and accurate testing equipment for construction companies, material testing laboratories, infrastructure projects and quality control departments. We supply machines that deliver stable load application, clear readings and consistent performance for daily testing work. Clients choose us as a Compression Testing Machine Supplier in India because we focus on strength, durability and smooth operation. Our equipment supports quality testing processes and helps businesses maintain proper standards with confidence.

We work with industries that require dependable compression testing solutions. As a Compression Testing Machine Supplier in India, we understand practical lab needs and deliver machines that perform under regular working conditions. Our role as a Concrete Compression Testing Machine Supplier in India helps construction projects verify material strength. We also serve as a Steel Compression Testing Machine Supplier in India to support heavy-duty testing requirements. Clients rely on us as an Industrial Compression Testing Machine Supplier in India for large-scale operations. Many laboratories trust us as a Lab Compression Testing Machine Supplier in India for accurate and repeatable results. Businesses continue to prefer us as a Compression Testing Machine Supplier in India because we focus on reliability, professional support and long-term partnerships.

Compression Testing Machine Exporter in India

As a Compression Testing Machine Exporter in India, Superb Autocon supplies reliable and accurate testing equipment to international markets that require strength verification and quality control. We export machines that deliver stable load application, clear digital readings and consistent testing performance. Global clients choose us as a Compression Testing Machine Exporter in India because we focus on durability, performance stability and long service life. Our machines support construction companies, infrastructure projects, research institutes and quality testing laboratories that demand dependable results.

We serve multiple overseas industries with professional export support and timely delivery. As a Compression Testing Machine Exporter in India, we understand international testing requirements and provide solutions that meet practical lab needs. Our experience as a Mechanical Compression Testing Machine Exporter in India allows us to supply strong and reliable mechanical systems. We also operate as an Industrial Compression Testing Machine Exporter to support heavy-duty testing environments. Many clients rely on us as a Lab Compression Testing Machine Exporter in India for accurate laboratory testing. We also serve as a Portable Compression Testing Machine Exporter in India for flexible field testing needs. Businesses continue to trust us as a Compression Testing Machine Exporter in India because we focus on quality, consistency and long-term partnerships.

Compression Testing Machine Manufacturer in India

Product Overview
